In the development cycles of modern power electronics, electric vehicles (EVs), and energy storage systems (ESS), the reliability and accuracy of the testing platform directly determine whether a product can be successfully brought to market. As the core excitation source of the test system, the role of the DC power supply has long evolved from a simple power generating device into a highly sophisticated controllable test instrument. For a test engineer, selecting the right programmable DC power supply based on stringent application requirements is a systems engineering task that requires balancing transient response, system scalability, and automated integration capabilities.

Programmable Power Made Testing and Compliance Validation Easier

During early hardware validation stages, engineers often expended significant effort constructing complex, discrete test environments. Today, with increasingly stringent industry standards (such as ISO 16750-2 or LV 123 for automotive electronics), the Device Under Test (DUT) must demonstrate its robustness under extreme and dynamic electrical boundary conditions.

Programmable DC power supplies have fundamentally transformed the paradigm of compliance validation. Utilizing built-in Digital Signal Processors (DSP) and high-frequency switching topologies, modern programmable power supplies can recreate real-world grid fluctuations, battery voltage drops, or bus transient anomalies with microsecond precision. Engineers no longer need to manually adjust knobs; instead, they can invoke pre-configured regulatory test profiles (Arbitrary Waveforms) to execute highly repeatable, automated stress tests directly in the lab.

What Testing Sequence and Setup Does Programmable DC Power Supply Simplify or Replace?

In complex Automated Test Equipment (ATE) systems, integrating high-performance programmable DC power supplies can drastically streamline hardware architecture and optimize test sequences:

• Replacing Cumbersome “Source-Load” Separated Architectures: Traditional motor back-to-back testing or battery charge/discharge cycling typically requires a DC power supply (Source) paired with an electronic load (Load). This not only occupies substantial rack space but also demands complex anti-reverse diodes and external switching contactors. Programmable power supplies with bidirectional source/load functionality perfectly replace this physical combination, enabling seamless, bidirectional energy flow within a single unit.
• Eliminating Transient Glitches from Relay Switching: In the past, executing multi-step voltage step tests often relied on external switch matrices, which easily introduced contact bounce and voltage overshoots. The List/Sequence mode of a programmable power supply allows users to define hundreds or thousands of test steps—including voltage, current, and dwell time—at the software level. The power supply internally executes these sequences at an exceptionally high slew rate, completely eliminating the interference caused by physical switching.
• Simplifying Dedicated Simulator Hardware: Advanced programmable power supplies feature complex built-in algorithmic models. For instance, they can directly replace expensive, dedicated photovoltaic (PV) array simulators (via built-in EN50530 MPPT dynamic curves) or battery simulators (simulating the internal resistance and discharge characteristics of Li-ion and NiMH cells), giving a single device an extremely high utilization rate.

Long-term Drawbacks of Wrong Choice of Programmable DC Power Supply

We have seen too much a case where a wrong decision made for purchase at the beginning backfires when testing requirements evolve in the field, caused by improper upfront power supply selection. The wrong choice not only inflates future sunk costs but can also invalidate test results or even damage expensive DUTs:

• False fails Due to Inadequate Transient Response: If the power supply’s dynamic recovery time is too long, the bus voltage will experience a severe drop when the DUT undergoes a large current step (such as an inverter suddenly adding load). This voltage drop, caused by the power supply’s own performance bottleneck, is easily misdiagnosed as an under-voltage fault in the DUT.
• Overshoots Triggered by Source/Load Switching Interruption: When testing On-Board Chargers (OBCs) or motor controllers with traditional bidirectional power supplies that lack seamless switching, there is a dead time of several milliseconds when the current transitions from positive (output/sourcing) to negative (absorption/sinking). This delay can incite destructive voltage overshoots on the DC bus, which, in severe cases, can directly puncture the DUT’s IGBT or SiC components.
• Lack of Modular Scalability: As the power levels of new energy projects climb (evolving from 400V to 800V or even 1000V architectures), standalone power supplies that do not support Master/Slave parallelling face rapid obsolescence. The inability to scale capacity via parallelling means past investments in legacy equipment will be completely wasted.

High Peripheral Costs Driven by Low Energy Efficiency: Traditional dissipative electronic loads convert all electrical energy into heat during discharge testing. This requires massively oversized and expensive water-cooling or HVAC systems to maintain the laboratory environment, and the long-term electricity costs are staggering.

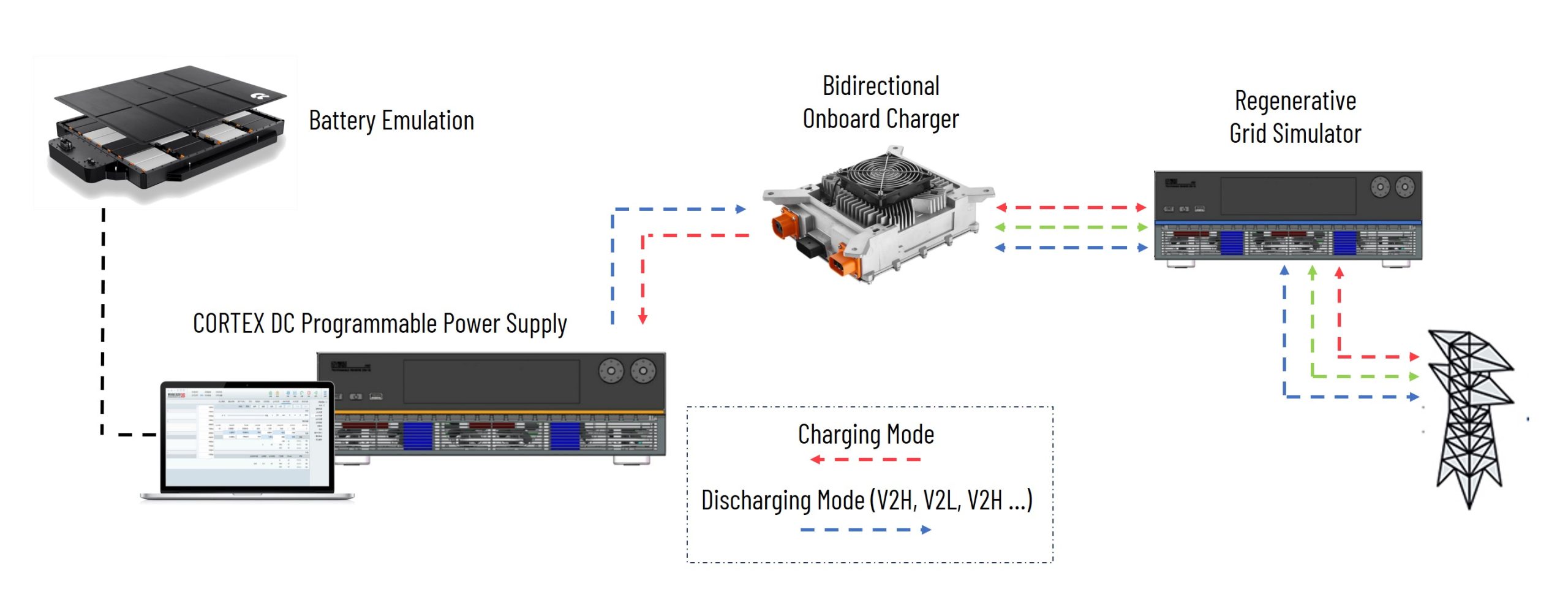

CORTEX DC Bidirectional Programmable Power Supply for EV OBC Testing

Discover CORTEX Bidirectional Programmable DC Power Supply

To address these challenges, the CORTEX Series Bidirectional Programmable DC Power Supply delivers the high power density, ultra-fast dynamics, and seamless integration required for demanding test environments:

• Seamless Bidirectional Flow: Achieves up to 95% regenerative efficiency and zero-delay Source/Load transitions, effectively eliminating destructive overshoots during EV, ESS, and microgrid testing.
• Ultra-Fast Response & Precision: Features a transient recovery time of <500μs (unidirectional: <600μs) and 0.02% F.S. accuracy, ensuring absolute fidelity for high-speed waveforms.
• High Power Density & Scalability: Packs 30kW into a compact 3U chassis. Powered by the fiber-optic Digital Matrix Parallel System (DMPS), it scales effortlessly up to 3MW (100 units) with built-in fault-tolerant redundancy for uninterrupted burn-in testing.
• Built-in Simulation & Control: Equipped with an 8-inch FHD touchscreen, rich automation interfaces (LAN, CAN, RS485), and out-of-the-box battery and PV MPPT simulation curves, eliminating the need for complex secondary development.
